Three-Phase All-In-One Energy Storage System SUN12000T-E/A

Three-Phase All-In-One Energy Storage System SUN12000T-E/A

(Euro-Standard)

Reimagine your home power experience with ROYPOW All-in-One Residential Energy Storage System. It integrates cutting-edge technologies to deliver reliable power performance, helping you optimize energy usage, cut down on costs, and enhance your home's energy independence with ease.

Product Description

Product Specifications

PDF Download

Support Parallel Working

Meet residential,small-scale commercial and industrial power demands

ESS SOLUTION

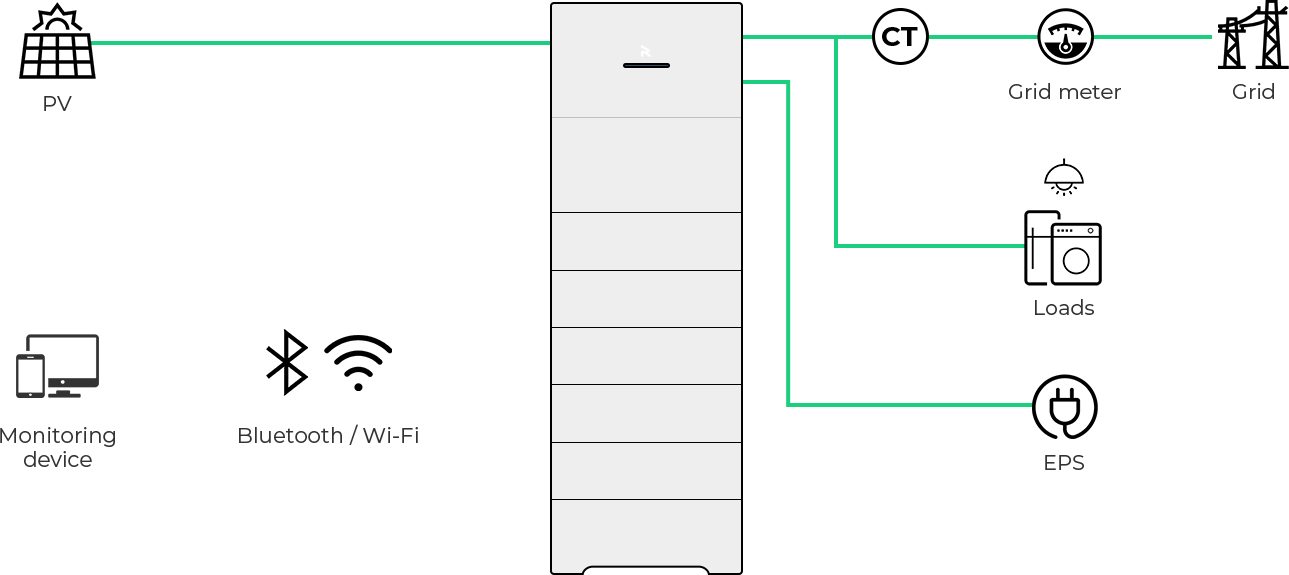

How It Works

System Specification

Model	SUN12OOOT-E/A
Rated AC Output Power ( W )	12000
Nominal Energy ( kWh )	7.6 to 132.7
Noise ( dB )	< 30
Operating Temperature Range	-18 ~ 50℃, > 45℃ derating
Dimensions ( WDH,mm )	650 x 265 x 780 + 200*N ( N=2 to 6 )
Ingress Rating	IP65
Mounting Options	Indoor/Outdoor, Floor standing or Wall mounted ( optional )

Battery System Specification Model

Model	2*RBmax3.8MH	3*RBmax3.8MH	4*RBmax3.8MH	5*RBmax3.8MH	6*RBmax3.8MH
Battery Module	RBmax3.8H (3.84 kWh, 76.8 V, 40kg )
Number of Battery Modules	2	3	4	5	6
Nominal Energy ( kWh )	7.68	11.52	15.36	19.2	23/04
Usable Energy ( kWh ) [ 1 ]	7.06	10.6	14.13	17.66	21.2
Rated Current ( A )	45	45	45	45	45
Nominal Power ( kW )	6.9	10.3	13.8	15	15
Peak Output Power ( kW )	8 for 10 sec.	12 for 10 sec.	16 for 10 sec.	17 for 10 sec.	17 for 10 sec.
Weight ( kg )	100.4	140.4	180.4	220.4	260.4

Model	2*RBmax5.5MH	3*RBmax5.5MH	4*RBmax5.5MH	5*RBmax5.5MH	6*RBmax5.5MH
Battery Module	RBmax3.8H (3.84 kWh, 76.8 V, 40kg )
Number of Battery Modules	2	3	4	5	6
Nominal Energy ( kWh )	11.06	16.59	22.12	27.65	33.18
Usable Energy ( kWh ) [ 1 ]	10.18	15.26	20.35	25.44	30.53
Rated Current ( A )	50	50	50	50	50
Nominal Power ( kW )	7.6	11.5	15	15	15
Peak Output Power ( kW )	8 for 10 sec.	12 for 10 sec.	16 for 10 sec.	17 for 10 sec.	17 for 10 sec.
Weight ( kg )	110.4	155.4	200.4	245.4	290.4

RBmax3.8MH & RBmax5.5MH Series
Operating Voltage Range ( V )	550-950	550-950	550-950	550-950	550-950
Dimensions ( Wx D x H, mm )	650 x 265 x 780	650 x 265 x 980	650 x 265 x 1180	650 x 265 x 1380	650 x 265 x 1580
Battery Nominal Voltage ( V )	153.6	230.4	230.4	307.2	384
BatteryOperating Voltage Range ( V )	124.8 ~ 172.8	187.2 ~ 259.2	249.6 ~ 345.6	312 ~ 432	374.4 ~ 518.4

Battery Chemistry	Lithium Iron Phosphate ( LiFePO4 )
Scalability	Max.4 in parallel
Operating Temperature	Charge: 0 ~ 50℃ (32 ~ 122F), Discharge: – 20 ~ 50℃ (-4 ~ 122F) ( > 45℃ (113℉) derating )
Storage Temperature	≤ 1 month:-20 ~ 45℃ ( -4 ~ 113°F ), > 1 month: 0 ~ 35℃ ( 32 ~ 95℉ )
Relative Humidity	5 ~ 95%
Max. Altitude ( m )	4000 ( > 2000m derating )
Protection Degree	IP65
Cooling Method	Natural Cooling
Mounting Options	Indoor / Outdoor, Floor standing, Wall mounted
DC Protection	Circuit Breaker, Fuse, DC-DC converter
Protection Features	Over Voltage / Over Current / Short Circuit / Reverse Polarity
Certifications	CE, VDE-AR-E 2510-50, EN IEC 62619, EN IEC 62477, EN IEC62040, RCM, CEC, UN38.3

Battery Optimizer	RMH95050
Voltage Range ( V )	550-950
Max.Charge / Discharge Current ( A )	27
Communication	CAN, RS485
Scalability	Max.4 in parallel
Dimensions ( W x D x H, mm)	650 x 265 x 270
Weight ( Kg )	15

Hybrid Inverter Specification

Model SUN12OOOT-E/I

Input-DC ( PV )

Max. Power ( Wp )	30000
Max. DC Voltage ( V )	1000
MPPT Voltage Range ( V )	160 ~ 950
MPPT Voltage Range ( V, full load )	240 ~ 850
Start Voltage ( V )	180
Max. Input Current ( A )	30 / 30
Max. Short Current ( A )	40 / 40
Number of MPPT	2
Number of String per MPPT	2-2

Input-DC ( Battery )

Compatible Battery	RBmax MH Battery System
Voltage Range ( V )	550 – 950
Max. Charge / Discharge Power ( W )	15000 / 13200
Max. Charge / Discharge Current ( A )	27 / 24

AC ( On grid )

Rated Output Power ( W )	12000
Max. Output Apparent Power ( VA )	13200
Max. Output Power ( W )	13200
Rated Input Apparent Power ( VA )	22500
Max. Input Current(A)	32
Rated Grid Voltage ( V )	380 / 400, 3W+N
Rated Grid Frequency ( Hz )	50 / 60
Max. Output Current( A )	3 * 19.2
THDI ( Rated power )	< 3%
Power Factor	~1( Adjustable from 0.8 leading to 0.8 lagging )

Model SUN12OOOT-E/I

AC (Back Up)

Rated Output Power ( W )	12000
Rated Output Current ( A )	3 * 19.2
Rated Bypass Power ( VA )	22500
Rated Bypass Current ( A )	32
Rated Output Voltage (V)	380 / 400, 3W+N
Rated Frequency ( Hz )	50 / 60
THDV ( @linear load )	< 2%
Overload Capacity	120% for 10 min, 200% for 10 S
THDV	< 2 (R load ), < 5 (RCD load )
Scalability	Max. 6 in parallel

Efficiency

Max.Efficiency	98.3%
Euro.Efficiency	97.6%
Max. Charge Efficiency ( PV to Bus )	99%
Max. Charge / Discharge Efficiency( Grid to Bus )	99%

Protection

DC Switch / GFCl / Anti-islanding Protection / DC Reverse-polarity Protection / AC Over / Under Voltage Protection /AC Over Current Protection / AC Short Circuit Protection / Insulation Resistor Detection / GFCI

DC / AC Surge protection Device	Type Ⅱ / Type Ⅲ
AFCI / RSD	Optional

General Data

Switch Time	< 10ms
Cenerator Interface	Optional
PV Switch	Integated
PV Connection	MC4 / H4
AC Connection	Connector
Operating Temperature Range	-25 ~ 60℃ ( -13 ~ 140°F ), > 50℃ ( 122°F ) derating
Relative Humidity	0 ~ 95%
Altitude ( m )	4000
Communication Interface	RS485 / CAN / USB/ ( Wi-Fi / GPRS / 4G / Ethernet optional )

Topology	Transformerless
Noise ( dB )	< 30
Night Self Consumption ( w )	< 10
Cooling	Natural Convection
Display	LED + APP ( Bluetooth )
Protection Degree	IP65
Dimensions ( W x D x H,mm )	650 x 265 x 390
Net Weight ( kg )	28
